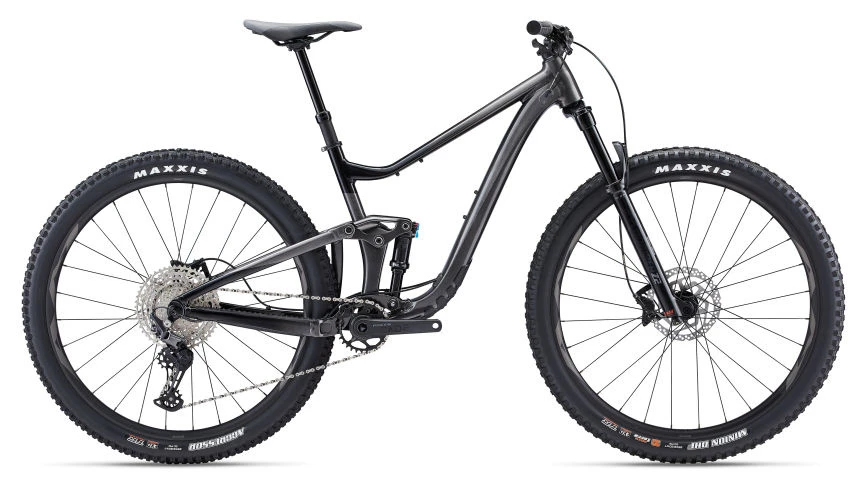

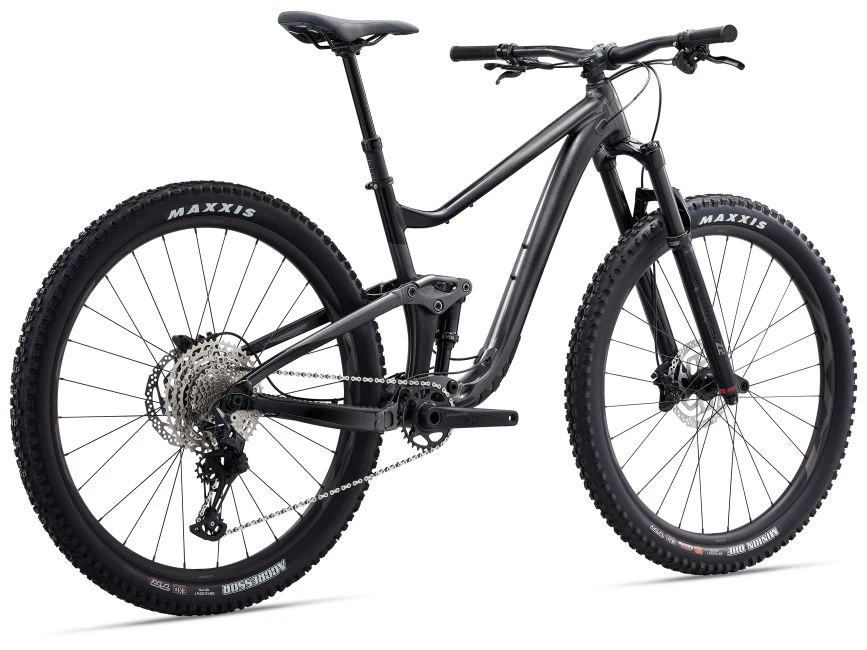

Giant Trance 29 is an ideal partner for playful trails, singletracks, but also all-day terrain. It takes the name “universal trail bike” to completely different dimensions and is addictively fun.
Thanks to the flip chip inserts located in the upper rocker arm of the suspension, you can easily adjust the geometry of the bike for your riding style or terrain in which you ride most often. While the Low setting (head angle 65.5 °, saddle 76.3 °) is ideal for heavier terrain, the High setting creates an XC-oriented setting.driving position (angles 66.2 ° / 77 °).
- stroke 130 mm front, 120 mm rear

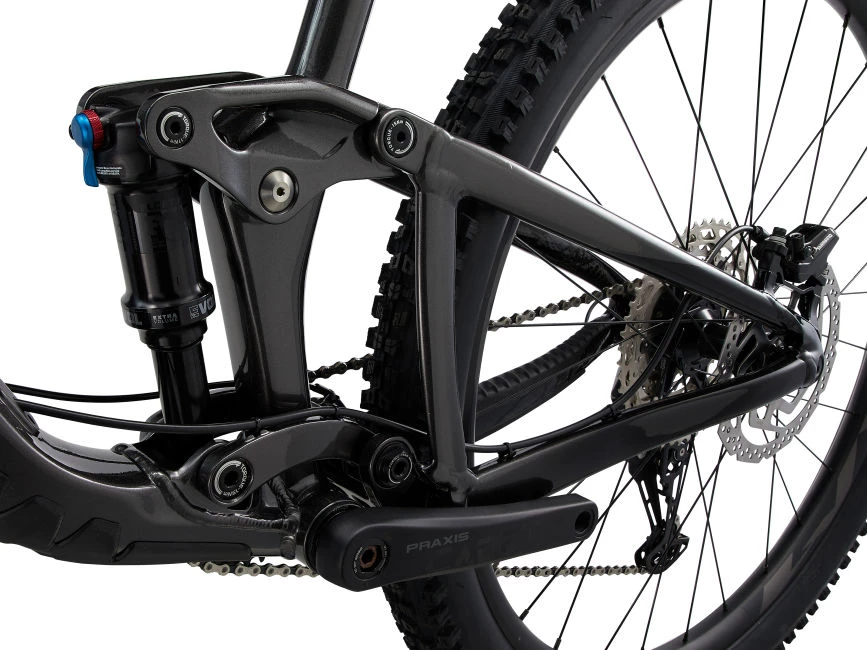

- The Maestro suspension system is sensitive to unevenness without unwanted swaying when pedaling
- metric standard damper with Trunnion Mount

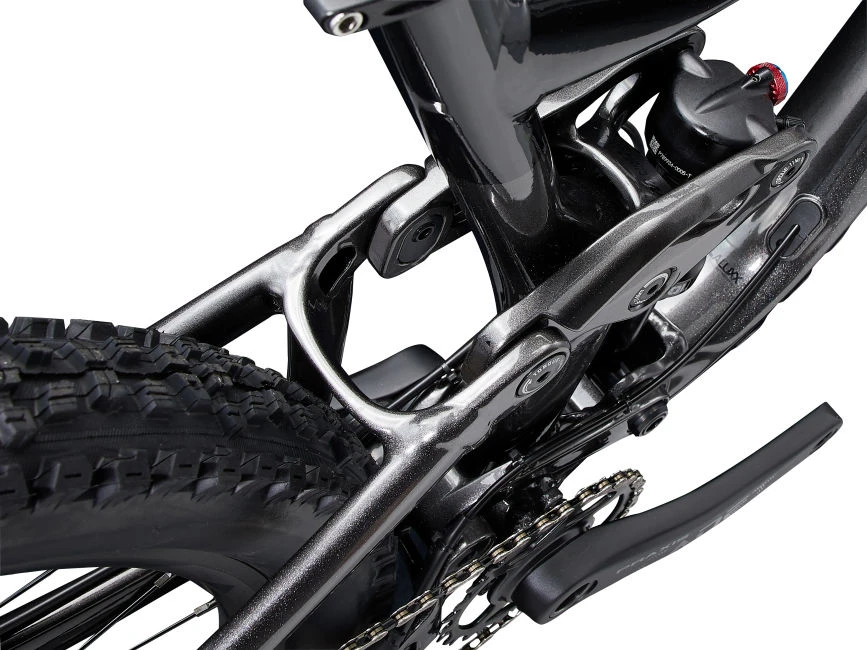

- one-piece carbon rocker arm
- fixed axis boost 15×110 mm / 12×148 mm
- internal Bowden cable and rear brake hose
- ISCG05 chain tensioner holder
| FRAME | |
| Frame: Fork: Silencer: | ALUXX SL Aluminum, Maestro suspension, stroke 120 mm, fixed axle 12×148 mm Marzocchi Z2, stroke 130 mm, GRIP damping, Boost fixed axle 15×110 mm, OverDrive post FOX Float DPS Performance, Trunnion Mount |
| COMPONENTS | |
| Handlebars: Stem: Seat: Pedals: | Giant Contact TR35, 780x35mm Giant Contact SL 35 Giant Contact Switch, telescopic, 30.9 mm Giant Romero – |
| DRIVE | |
| Sorting: Derailleur: Derailleur: Brakes: Brake levers: Cassette: Chain: Cranks: Central axis: | Shimano Deore, 1×12 – Shimano Deore Shimano MT401 Shimano Deore, 10-51 teeth Shimano Praxis Cadet Boost, 30-tooth converter Practice, press fit |
| WHEELS | |
| Rims: Ammunition: Wires: Tires: | Giant AM 29, tubeless ready, sleeve-joint, 30 mm internal width Giant Boost, fixed axes 110×15 and 148×12 mm Sapim Maxxis Minion DHF 29×2.5 WT, 3C MaxxTerra, EXO,TR, tubeless Maxxis Aggressor 29×2.5, EXO, TR, tubeless |
